Product Specifications
Precision Gearheads

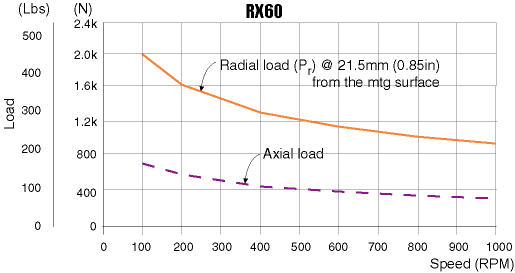

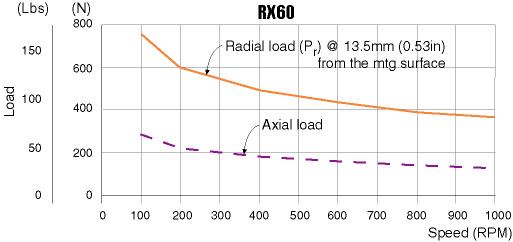

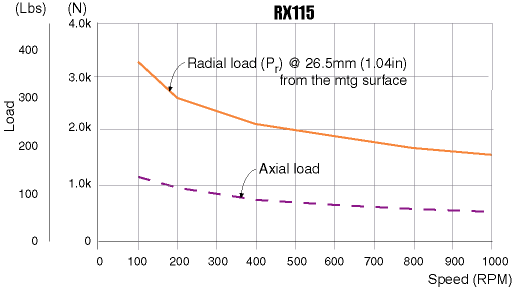

Formulas to calculate Radial Load (Prx) at any distance "X" from the gearhead mounting surface.


Prx = (Pr)(54mm) / (41mm + X)
Prx = (Pr)(2.13in) / (1.61in + X)


Prx = (Pr)(73mm) / (52mm + X)
Prx = (Pr)(2.87in) / (2.05in + X)

Prx = (Pr)(89mm) / (63mm + X)
Prx = (Pr)(3.5in) / (2.48in + X)
