| When to Use:
- Precision vertical motion
- Short travel
- Sub-micron repeatability
- Smooth motion
Applications:
- Auto focusing
- Electronic probing
- Part insertion
- Lifting/Leveling platforms
- Metrology/Part inspection
|

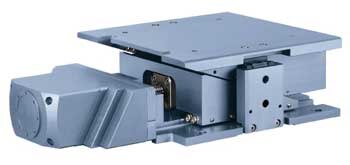

Z Wedge Stages are designed for applications requiring precise vertical positioning. Designed with precision crossed rollers and a high-precision ball screw, Z Wedge Stages provide a high-accuracy platform with high stiffness for a variety of applications.
Z Wedge Stages offer designers unobstructed platform access from all sides of the stage (including the top) allowing easy mounting in conveyor and gantry platforms.
High Accuracy, Vertical Positioning
The Z Wedge provides vertical motion by driving the center wedge horizontally. As the center wedge moves, the top plate is actuated straight up and down without any horizontal displacement. Designed using a lightweight aluminum alloy, Z Wedge Stages provide precise movement, any way you need it.
|
